Me pehea e mahi ai nga Inductors Tūmau i nga Hātepe Hiko

Ko te inductor tūmau i hangaia hei whakaratonga i te uara inductance pono, kāore e rerekē i a ia e whakahaere ana. Kāore atu e whakamahia i roto i ngā hātepe e hiahia ana ki te whakahaere pūngao tau, te pupuri pūngao, te tātari noise, me te whakatikatika tono. Ko te whakaritenga o nga inductors tūmau e pa ana ki nga take matua pērā i te uara inductance, te rauemi pūrākau, te tohu rārangi, te whakaheke, te pūāhua whakahoki, me te momo pūkete. Ka whakamarama tēnei tuhinga me pēhea te mahi o te inductor tūmau, me pēhea te whai hua inductance, āna mahi matua, ngā momo rerekē, ngā whakaritenga, ngā tohu, me ngā tono e tino kitea ana i te ao.

Kātāloga

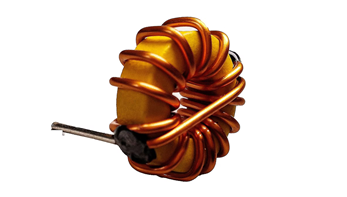

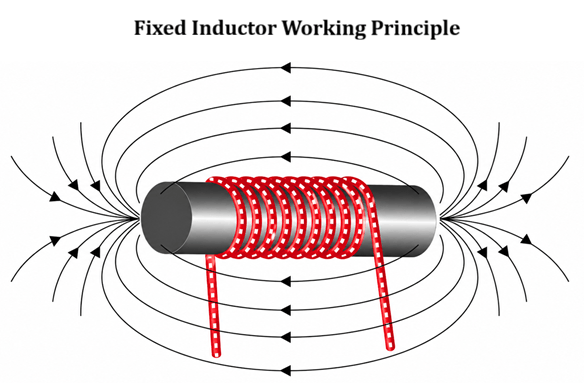

Me pehea e mahi ai te Inductor Tūmau?

E mahi ana te inductor tūmau mā te hanga me te pupuri pūngao i roto i te papa rūnanga ina te mana hiko e rere ana i roto i tana taura. I te whakarapopototanga i te whakaahua i raro nei, ko te taura pātea e whakapiri ana ki tetahi rauemi pūrākau, ā, ina ka tukuna te voltage ki ngā pōkai, ka tīmata te mana e rere ana i roto i te taura. Ka hanga tēnei mana i te papa rūnanga i raro i ia huringa o te taura. Ka whakakotahi ngā papa rūnanga takitahi hei hanga i te papa rūnanga kaha, e tohu ana i ngā raina kowhai pērā me ngā riu e karapoti ana i te inductor. Ka awhina te rauemi pūrākau ki te whakakotahi i te pēhanga rūnanga, e whakakotahi ana i te inductance me te whakakaha i te āheinga o te inductor ki te pupuri pūngao.

I a ka nui haere te mana, ka whakawhānui te papa rūnanga, kāore e pupuri pūngao i roto i te papa rūnanga e karapoti ana i te taura. Ko tetahi o nga āhuatanga tino nui o te inductor tūmau ko tōna āheinga ki te tautoko i ngā huringa ohorere i te mana. Ina ka whakamātau te mana ki te pākū i te tere, ka hanga te papa rūnanga e whakawhānui ana i te voltage e pānui ana i te pākiki. Ka pēnā, ina ka tīmata te mana ki te heke, ka whakaputa te papa rūnanga e heke ana i te voltage ka tūtohu ki te pupuri i te rere o te mana. Ko tēnei hītori, e mōhiotia ana hei inductance pōturi, ka awhina ki te whakatika i ngā huringa mana i roto i te hātepe.

Ka tangohia te pūngao mai i te puna pūngao, kāore e heke te mana, ka whakararu te papa rūnanga ka tuku te pūngao e pupuri ana ki te hātepe. Ko tā rātou āheinga ki te pupuri pūngao rūnanga me te aukati i ngā tāparutanga tere o te mana hei āhuatanga tino nui i roto i te maha o ngā pūnaha hiko.

Te Whakaaro i te Inductance i nga Inductors Tūmau

Ko te inductance te āhuatanga o te inductor tūmau e whakatau ana i te āheinga ki te whakaputa me te pupuri papa rūnanga ina ka rere te mana i roto i te taura. E tohu ana i te āheinga o te inductor ki te aukati i ngā huringa i te mana mā te hanga i te voltage e pā ʻia ana. Ko te whānuitanga o te inductance e inehia ana i roto i te henries (H), me ngā uara iti e mau nōna i te millihenries (mH) mēnā kua whakamahi ngā microhenries (μH). Ko te uara inductance teitei e pāana atu ana i ngā inductors ki te pupuri i te pūngao rūnanga, e whakaratangatia ana i te aukati ki ngā huringa i te mana.

Ko te inductance o te inductor tuturu ka whakararangihia e ngā tawhā ā-tinana maha, i te mea ko te rahi o ngā huruhuru waea, te momo rauemi o te kaupapa, te rahi o te rohe whakawhiti o te kaupapa, me te roa o te ara mātao. Mo te spiral māmā, ka taea te whakatata ki te inductance mā te whakamahi i te pūnaha:

kei te:

• L = Inductance (H)

• μ = Te whakawhānuitanga o te rauemi kaupapa

• N = Rahi o ngā huruhuru i te waea

• A = Te rahi o te rohe whakawhiti o te kaupapa (m²)

• l = Te roa o te ara mātao (m)

E ai ki tēnei whanaungatanga, ma te pikinga o ngā huruhuru, e whakamahi ana i te rauemi kaupapa me te whakawhānuitanga teitei, kāore i reira te ara matua, ka piki te inductance. I runga i te toenga, ko te roa o te ara mātao ka whakaiti i te uara inductance. Nāna i whakapumautia ēnei āhuatanga ā-tinana i te wāhanga, ka noho tonu te inductance o te inductor tuturu i ngā wāhi o ngā tikanga whakahaere noa.

Ngā Whakaaro o ngā Inductors Tuturu

• Te Penapena Pūngao - Ka penapena pūngao i roto i te mara mātao ina ka rere te waea i roto i te waea.

• Te Whakarite me te Whakaitinga Ripple - Ka whakaiti i te ripanga pātea me ngā huringa karaihe i roto i ngā hiko pātea. Ka āwhina ki te tuku i te putanga māmā me te tūhono pai.

• Te Pāwhiri EMI me te Whakahē Noise - Ka aukati, ka whakaheke i ngā tohu noise teitei e hiahiatia ana. Ka whakapiki i te torohūngia pūngao me te kounga tohu.

• Te Whiriwhiri me te Tuning Frequency - Ka mahi ki ngā capacitors ki te hanga i ngā hiko rēnana.

• Te Whakatūpato me te Whakaheinga Signal - Ka whakahaerehia te rere o ngā tohu AC me DC i roto i te hiko. Ka āwhina ki te wehe i te noise me te whakapiki i te tūhono o te hiko.

• Te Whakarōpū Kiri me te Whakaora i te Circuit - Ka pāremu i ngā huringa ohorere i roto i te rere pūngao. Ka āwhina ki te whakaiti i te rere pātea ka tiakina ngā wāhanga pātea mai i ngā pikinga pūngao.

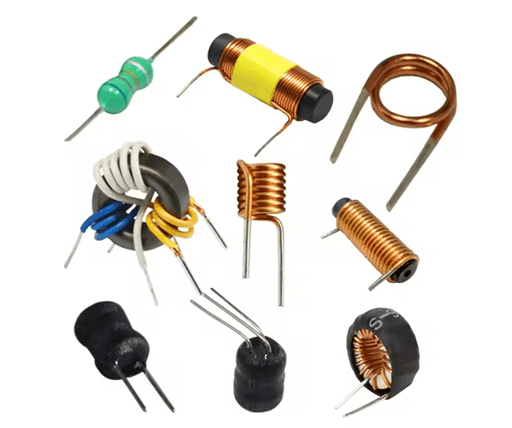

Ngā Momo Rerekē o ngā Inductors Tuturu

Ngā Momo E Pa Ana ki te Rauemi Kaupapa

• Ngā Inductors Air-Core - Ko ngā inductor air-core kāore e whakamahi i te rauemi kaupapa mātao, ā, e whakawhirinaki ana ki te hau hei ara mātao. Nāna i te kore he ngaro kaupapa, he tūturu i ngā pātea teitei.

• Ngā Inductors Iron-Core - Ko ngā inductors iron-core e whakamahi ana i te kaupapa rino hei whakararau i te whakawhānuitanga mātao me te inductance. Ka taea e rātou te penapena i te pūngao mātao i runga ake i ngā inductors air-core, ā, ka whakamahia pea i roto i ngā tono hiko pātea teitei. Heoi, ka taea e rātou te pā ki ngā ngaro kaupapa teitei i ngā pātea teitei.

• Ngā Inductors Ferrite-Core - Ko ngā inductors ferrite-core e whakamahi ana i ngā rauemi mātao pērā i te keramik mō te mōhiotanga ferrites. Ka tuku ēnei kaupapa i te inductance teitei, i te mea e pupuri ana i te ngaro pātea tino iti i ngā pātea waenganui me ngā pātea teitei.

• Ngā Inductors Powdered Iron - Ko ngā inductors powdered iron e hangaia ana mā te whakamahi i ngā ngira rino ngāwari e whakakotahi ana ki te rauemi tiaki. Ka āwhina tēnei hoahoa ki te whakaiti i ngā ngaro pātea me te tuku i te tūhono pai i runga i te whānuitanga pātea.

Ngā Momo E Pa Ana ki te Hanganga

• Ngā Inductors Wire-Wound - Ko ngā inductors wire-wound e hangaia ana mā te kōperu i te waea mātotoru ki te kaupapa, ki te hanga pūtea. Kei te wātea rātou i roto i te whānuitanga nui o ngā uara inductance me ngā whakatauranga pūngao.

• Ngā Inductors Multilayer Chip - Ko ngā inductors multilayer chip he wāhanga tiaki taituarā kei te hangaia mā te tākai i ngā paparanga pātea me ngā paparanga mātao. Nāna i te rahi iti, he pai rātou mō ngā papa hiko teitei e whakamahia ana i roto i ngā waea atamai, ngā tēpū, ngā hangarau kore taura, me ētahi atu taputapu hiko kawe.

Ngā Momo E Pa Ana ki te Whakaaro

• Ngā Inductors Power - Ko ngā inductors power kua hangaia hei whakahaere i ngā pātea teitei me te penapena i ngā rahi tino o te pūngao. He wāhanga nui rātou i roto i ngā pūtaiao pātea, ngā kaiwhakatika DC-DC, ngā taputapu e ngohengohe ana, me ngā pūnaha whakahaere pūngao.

• Ngā Inductors RF - Ko ngā inductors RF e whakatakoto ana mō ngā tono pātea reo, ā, kua hangaia hei whakahaere i ngā pātea teitei. Kei te whai rātou i ngā ngaro iti, ngā paerewa teitei (Q), me ngā āhuatanga hiko tika.

Ngā Whakaritenga o ngā Inductors Tuturu

Whakaritenga	Tērā ko te Rahi / Uara	Whakaahuatanga
Uara Inductance	1 nH ki te 100 H+	Rahi o te inductance i tukuna e te waihanga.
Tolerance Inductance	±1%, ±2%, ±5%, ±10%, ±20%	Ka tohu i te pehi o te inductance tūturu e taea ana e ia te rerekē mai i te uara i tohua.
Pōti Taumata (Irms)	10 mA ki te 100 A+	Te pātea teitei e taea ana e te inductor te tuku i tetahi mea haumaru.
Te Pōti Saturation (Isat)	50 mA ki te 200 A+	Te taumata pūngao e tīmata ana te inductance ki te whakaiti nui.
Te Whakararu DC (DCR)	0.001 Ω ki te 100 Ω	Te whakararu i roto i te waea. Ka whakapai ake i ngā uara iti te pātea.
Frequensi Kīore Kore (SRF)	100 kHz ki te 10 GHz+	Frequensi e noho ana te inductor hei pūnaha kīore kore.
Kounga Whakaaro (Q)	10 ki 300+	Ka ine te whai hua o te pūngao e pā ana ki te ngaro pūngao.
Mahana Te Mahi	-55°C ki +155°C	Te rārangi mahana mō te whakahaere pono.
Rauemi Tūātea	Hau, Ferrite, Pāhea Parahi, Karami	Rauemi rōnaki e whakamahia ana hei whakatutuki i te inductor e hiahiatia ana.
Kōwhiringa Mahana	±20 ki ±500 ppm/°C	E tohu ana i te whakarerekē i te inductor e pā ana ki ngā huringa mahana.
Pūtahi Insulation	≥100 MΩ	Te putanga i waenganui i te whakawhiti me te tīpu, i ngā pūtatū.
Wahanga Taumata	10 V ki 1000 V+	Te pāmahana teitei e taea te whakamahi haumaru.
Frequensi Whakamātautau	1 kHz, 10 kHz, 100 kHz, 1 MHz	Frequensi e whakamahia ana hei ine i te uara inductor.
Ipu Āhua	Pātea-Whakahohe, SMD, Rārangi, Arotahi	Āhua physical o te inductor.
Āhua Haumaru	Haumaru, karekau i haumaru	Ka whakatau i te pāngari ki ngā pokanga hiko (EMI).
Rahi / Whakatakanga	0201 ki ngā inductor pūngao nui	Ka rerekē ngā whaiwhai physical i runga i ngā whakaritenga āwhina.

Nga Mātai Inductor Tūtohu Kōwhiringa ma nga Whakahaere

Ngā Whakahaere	Uara Inductance Auau	Taumata Auau	Rārangi Frequensi
RF Pūtahi	1 nH – 10 µH	10 mA – 1 A	MHz ki GHz
Filtering Tūru	1 µH – 100 mH	10 mA – 5 A	kHz ki MHz
DC-DC Whakawhitinga	0.1 µH – 100 µH	0.5 A – 100 A	100 kHz – 5 MHz
Pūngao Kāinga	10 µH – 10 mH	1 A – 50 A	50 Hz – MHz
Pūnaha Oro	100 µH – 100 mH	100 mA – 10 A	20 Hz – 20 kHz
EMI Whakararu	1 µH – 100 mH	100 mA – 50 A	kHz ki MHz

Tūtohu Inductor Pīkoko me ngā Kōwhiringa Inductance

I muri i te arotake i ngā whakaritenga matua o ngā inductor pākuru, he mea nui ki te mōhio me pēhea te whakaatu i ēnei uara i runga i te āhua o te wāhanga. Ka whakamahia e ngā kaiwhakanao ngā pūnaha tohu rerekē hei tohu i ngā uara inductor, ngā whakatārewatanga, me te mōhio whakaaro tohu o te hua. Ko te ako ki te pānui i ēnei tohu ka āwhina i a koe ki te āta kite i ngā whakaritenga o te inductor i runga i te hoahoa pūnaha, te rapu raru, me te whakakapi.

Ka whakamahia e ngā inductor pākuru māmā he pūnaha waehere toru-digit. I tēnei āhua, ko ngā tau tuatahi e rua e tohu ana i ngā ture nui, i te mea ko te tau tuatoru e tohu ana i te kaipākihere. Hei tauira, ko te waehere 102 e tohu ana i te 1000 nH (1 µH), a ko te 472 e tohu ana i te 4700 nH (4.7 µH).

Ka whakamahia e etahi inductor he pūnaha waehere whā-digit hei tuku i te tika ake. I konei, ko ngā tau tuatahi e toru e tohu ana i ngā ture nui, ā, ko te tau tuawhā e tohu ana i te kaipākihere. Hei tauira, ko te 1001 e pa ana ki te 1000 nH (1 µH).

Ko ngā inductor pūtea rahi me ngā inductor pūngao ka tūtohu pēnā i ngā uara inductor i te pānui whāngai i ngā µH, i ngā mH. Ka taea te whakauru i ngā tohu atu, pēnā i ngā waehere whakatārewanga, tūtohu kaiwhakapā, waehere rā, me ngā tau waahanga. I te mea e rerekē ana ngā āhua tūtohu i waenganui i ngā kaiwhakanao, ka tūtohuhia te pānui raraunga ina hiahiatia ngā whakaritenga taipitopito pērā i te taumata auau, te whakatārewanga, me te rauemi whakaātea.

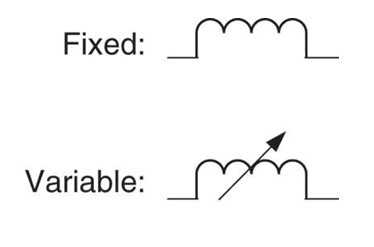

Inductor Pākuru vs Inductor Rerekē

Āhuatanga	Inductor Pākuru	Inductor Rerekē
Uara Inductance	Pākuru, kāore e taea te whakarerekē	Ka taea te whakarerekē i roto i te rārangi kua whakaritea
Hangahanga	Ka whakamahi i te kōkara pākuru me te hoahoa tīpu	Ka whakamahi i te kōkara ka taea te whakarerekē, i te whakaritenga tuning
Tuning Pūnaha	Kāore e pai mō te tuning i muri i te tāutanga	I hangaia mō te tuning pūnaha me te kalipera
Ngā Whakaritenga	Teitei te pāmahana me te mahi totika	Ka rerekē pea nāna i whakarerekē, nāna i hihiko
Pānga	Hangahanga māmā	He hoahoa mīhini più kawarau
Utu	Mēnā ka iti te utu	I te nuinga he mea whakanui ake te utu
Rahi	E wātea ana i ngā rahi tino rahi	I te nuinga ka nui ake nāna i te whakaritenga whakarerekē
Te Whakapau	Teitei te whakapau me te iti ngā wāhanga neke.	Ita te whakapau nāna i ngā wāhanga ka taea te neke.
Tautoko	I te nuinga kāore e hiahiatia he whakarerekē i muri i te tāutanga	Ka tino hiahiatia he whakarerekē ihumāta, ā, kalipera.

Ngā Whakamahi Tūturu o ngā Inductors Pūtake

• Ngā Pā Mātauranga Pūerto me ngā Huri DC-DC

• Ngā Pūnaha Whakatūpato EMI me te Oro

• Ngā Pātū RF me ngā Āhua Whakamahi

• Ngā Pūtanga Oscillator me ngā Pūnaha Taimi

• Ngā Pūnaha Pāoro me ngā Pūkā

• Ngā Hīra me ngā Pūnaha Otahi Ahumahi

• Ngā Pūnaha Ātomo Motuka me ngā Pūnaha Whakahaere Pākahiko

• Ngā Pūnaha Kaihoko me ngā Pūrere Haumaru

• Ngā Pūnaha Inverter Ra me ngā Pūnaha Pūngao Tūturu

• Ngā Whakamātau me ngā Pūrere Instrumentation, etc.

Whakamutunga

Ko ngā inductors pūtake kei te kawenata mō te whakahaere i te auau, te penapena i te pūngao mīhini, te whakaiti i te oro hiko, me te whakapai ake i te pūnaha. Nā te mea he pūtake te uara inductance, ka tukuna e rātou he paihanga e taea te whakatau me te pono i roto i te maha o ngā pūnaha hiko. Ko te kōwhiringa i te inductor pūtake tika e hiahiatia ana te tirotiro i ngā mea ake i te uara inductance anake. Ko ngā whāinga hira pērā i te auau kaute, te auau papu, te uhi DC, te pūkenga, te whakakī i ngā rauemi, te whānuitanga auau, me te pāmahana whakahaere e pā ana ki te whakahaere. Mā te mārama ki ēnei taipitopito, ka taea e koe te whiriwhiri i te inductor pūtake e hāngai ana ki te pūngao, te auau, me ngā whakaritenga pono o te pūnaha.

Ngā Pātai e Pūtahia Ana [FAQ]

1. He aha te mea nui o te auau papu i te wā e kōwhiri ana i te inductor pūtake?

Ko te auau papu he mea matua ki te whakarite i te auau mak kāore e taea te whakahaerehia e te inductor i mua i te tīmatanga o te kaupapa mud. Mēnā ka pā te auau whakahaere i tēnei paerewa, ka pā te pāmahana me te pai o te pūnaha.

2. Me pēhea te pānga o te uhi DC (DCR) ki te nui o te inductor pūtake?

Ko te DCR e kaihanga ana i te ngaronga pūngao i te āhua o te pāhū. Ko te DCR iti ka whakapai ake i te paihanga, ka whakaheke i te pāmahana me te whakaiti i te ngaronga pūngao i ngā Pūnaha Pākahiko.

3. He aha te mea e whakamahia ana ngā inductors pūtake ferrite ki ngā pā Mātauranga Pūerto?

Ka tuku ngā pūtake ferrite i te mea teitei i te uara inductance me te ngaro iti i ngā auau toharite me ngā auau teitei. Ko tēnei e whakarite ana i a rātou ki ngā pouaka whakahaere he, ngā huri, me ngā tono hore.

4. He aha te mea ka pā ki te wa e whakamahi ana i te inductor pūtake i runga i tana auau āpōpō (SRF)?

I runga i te SRF, ka tiimata te inductor ki te pūkehi ki te kāpere i te kāpia i te kāhera. Ka taea e tēnei te whakaiti i te hua whakakōwhiri, ka pā hoki ki te pai o te pūnaha.

5. Me pēhea te pānga o te maha o ngā hiri ki te ingoa inductance?

Ka piki te nui o ngā hiri ka piki te uara inductance nāna i patu i ngā hiko e pā ana me ngā pūngao wawe ka whakawhitingia i roto i te katoa. Heoi anō, ka piki anō pea ngā uhi me ngā rahi o ngā whakaritenga.

6. I te wāhea ka whakamahia he inductor tiakina i te kāpere pēnei i te inductor kākahu?

Ka pai ake ngā inductors tiakina i te wā e hiahia ana te pāpā raru te akiaki e kīia ana. Ka awhina rātou ki te whakaiti i te pānga o te mara mīhini me te aukati i te raru ki ngā tauira e tata ana.

7. He aha te mea e whakamahia ana ngā inductors pūtake hau i ngā pēnā RF?

Kāore ngā inductors pūtake hau i te raru i ngā ngaro pūtake āhua me kāore rātou e raru i ngā pūtake. Ka taea e tēnei te whakawhanake i a raatau mahi pai i ngā auau teitei e whakamahia ana i ngā pūnaha RF me ngā whakawhitinga.

8. Me pēhea te pānga o te rauemi mīhini i te kaha ki te whakahaere i te auau o te inductor pūtake?

He rerekē ngā rauemi mīhini i ngā āhua mīhini rerekē. Ko ngā rauemi pērā i te puehu rino ka taea te whakahaere i ngā auau teitei i mua i te whakauru, engari ko ngā pūtake ferrite ka whangaihia mō te whakahaere i ngā auau teitei.

9. He aha te rerekētanga i waenganui i te auau kaute me te auau papu?

Ko te auau kaute te auau teitei e taea e te inductor te mau kāore e pā ki te pāmahana. Ko te auau papu te wā e tiimata ana te inductance ki te rewa atu nāna i te whakauru o te pūtake.
