Ka whakamaramahia te Q-Factor o te inductor: Poutanga, Paanga, me nga Taupānga

He mea nui ngā inductor i roto i ngā punaha pūngao, ngā lọta, ngā hiko RF, me ngā pūnaha whakawhitiwhiti kōrero. Heoi, kāore ngā inductor i te tino pai i te mea e whai ana rātou i te hautūtanga, ngā ngaro, me ngā pānga pāpori e taea te raru i te whakatutuki o te pūnaha. Ka kōrerohia e tēnei tuhinga te tikanga o te q-factor inductor, te take he mea nui, me pēhea e pā ana ki te whakatutuki, me pēhea te whiriwhiri i te inductor pai i runga i te q-factor.

Kātālog

He aha te Q-Factor o tētahi inductor?

Ko te Kounga Whakarite (Q-Factor) o te inductor he ine o te pai o te rokiroki i te pūngao pāni i te tārohia ki te pūngao e ngaro ana i te wā e mahia ana. He mea nui ia i te whakaū i te whakatutuki o te inductor, i roto i ngā hiko RF, ngā paearu hakahaka, ngā lọta, ngā pūhiko, me ngā tono pānga anga.

Ko te inductor tino pai e rokiroki ana i te pūngao me te kore ngaro. I te whakamahinga, e ngaro katoa ana te inductor i ngā hautūtanga, ngā ngaro pokanga pāni, me ngā pānga pāpori e tere huri ana i te wāhanga o ngā pūngao rokiroki ki te wera. Ka āwhina te Q-factor ki te ine i ēnei ngaro.

Me pēhea e whakaritea ai te Q-Factor

Ko te Q-factor e tohu ana hei te ratio o te reactance inductive ki te hautūtanga raupapa whaihua i runga i te auau e tū mai ana.

I reira:

• Q = Kounga Whakarite

• XL = Reactance Inductive

• f = Auau e mahi ana

• L = Inductance

• RESR = Hautūtanga Raupapa Whaihua

E whakaatu ana tēnei tauanga ko te pikinga o te Q-factor e tupu ana i te wā ko te reactance inductive teitei, ā, ka heke ana te ngaro i te wā e nui ana.

tauira o te Whakatau i te Q-Factor o te inductor

Ka whakaarohia tētahi inductor e whai ana i:

• Inductance (L) = 10 µH

• Auau (f) = 10 MHz

• ESR = 2 Ω

I te tuatahi whakatauhia te reactance inductive:

X_L=2πfL

X_L=2π(10×10⁶)(10×10^-6)

X_L≈628 Ω

Nā, whakatauhia te Q-factor:

E tohu ana tēnei i tētahi inductor Q-runga e tika ana mō ngā tono RF me ngā paearu hakahaka.

He aha te take e mea ai te Q-Factor hei whiriwhiringa i te inductor

He nui ngā inductor ka riro i te same inductance value engari ka rerekē ngā whakatutuki i roto i ngā pūnaha tūturu. Ka āwhina te Q-factor ki te ine i te pai me te ngaro āhuatanga o tētahi inductor i te auau mahi motuhake. Ka āwhina te Q-factor ki te whakataurite i ngā āhuatanga ngaro o ngā inductor e mahi ana i te auau kotahi. I runga i tēnei take, ka whakaarohia te Q-factor i te taha o te inductance, te whakaritea i te hiko, te hautūtanga DC, me te auau whakaōranga ā-noa i te whiriwhiringa i tētahi inductor.

Ngā take e whakaheke ana i te Q-Factor o te inductor

He maha ngā mekameka ngaro e whakaheke ana i te Q-factor o tētahi inductor practical.

Hautūtanga Winding DC (DCR)

Ko te waea parahi e whakamahi ana hei hanga i te winding he hautūtanga mutunga ka mohiotia hei Hautūtanga DC (DCR). I te wā e rere ana te hiko i roto i te winding, ka ngaro te pūngao hei wera.

E pā ana te DCR ki:

• Te rahi o te waea

• Te roa o te waea

• Te rahi o ngā hurihanga

• Te rauemi kaika

I ngā tikanga, ka whakatipu ngā rahi o te taura i te pāmahana iti ake me te whakapai ake i te whaihua.

AWG	mΩ/ft	mΩ/m	AWG	mΩ/ft	mΩ/m	AWG	mΩ/ft	mΩ/m	AWG	mΩ/ft	mΩ/m
0	0.1	0.32	10	1	3.2	20	10	32	30	100	320
1	0.125	0.4	11	1.25	4	21	12.5	40	31	125	400
2	0.16	0.5	12	1.6	5	22	16	50	32	160	500
3	0.2	0.64	13	2	6.4	23	20	64	33	200	640
4	0.25	0.8	14	2.5	8	24	25	80	34	250	800
5	0.32	1	15	3.2	10	25	32	100	35	320	1000
6	0.4	1.25	16	4	12.5	26	40	125	36	400	1250
7	0.5	1.6	17	5	16	27	50	160	37	500	1600
8	0.64	2	18	6.4	20	28	64	200	38	640	2000
9	0.8	2.5	19	8	25	29	80	250	39	800	2500

Rārangi: Ko te Pāmahana Tuarua e taea te whakamahi hei whakarite i te pāmahana o ngā rahi taura AWG e rerekē ana. Ko ngā kaiāra māmā he pāmahana iti me te tārahi ki te kiore Q-kāhua.

Pāmahana AC me te Paerewa Kiri

I te piki ake o te iahiko, kāore e whakatauhia te iahiko ki te taura.

I te mea ka herea te iahiko ki te mata o te kaika. Ko tēnei tūāhuatanga e mōhiotia ana hei paerewa kiri. Ko te korenga o te kaika pāmahana ka piki te pāmahana AC me te whakapūmau i te ngaro pūngao tāpiri.

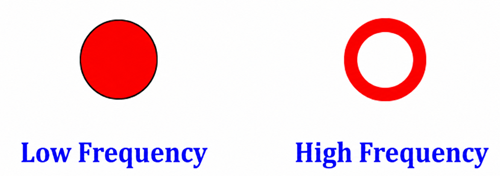

Te Raa Wātea o te Ia i te Kaika Koi

Ko te whakaahua e taea te whakaatu i te pehea e noho ana te iahiko i te katoa o te rārangi kaika i ngā pāmahana iti, i te wā e piki ana ngā pāmahana, ka herea ki te kāhua iti. Ko te whakaiti i te wātea kaika ka piki te pāmahana me te kāhua Q-kāhua.

Te Paerewa Rahi

I te mea he heamana mahi, kei te tata te nui o ngā kaiāra. Ko ngā āhua riri e hangaia ana e ngā huringa rākau e tino haere ana ki te hanga i te iahiko ki ngā wāhi motuhake o te taura.

Ko tēnei tūāhuatanga e mōhiotia ana hei paerewa rahi.

I ngā pāmahana iti, ka piki te paerewa rahi e pā ana ki te pāmahana AC, ā, ka taea te tāpiri i te ngaro atu i te paerewa kiri anake, i ngā huringa maha me ngā heamana e tika ana.

Ngā Ngāwhā Tuarua

Ka pāngia ngā heamana e whakamahi ana i ngā ngārara mana ki te aroha mai i roto i te rauemi ngārara.

Ko ngā ngāwhā tuarua ka noho i te pāmahana e pā ana ki:

• Te ngaro kāhui

• Te ngaro ia

Ko ēnei ngaro ka piki i ngā pāmahana mahi me te kohao pāmahana.

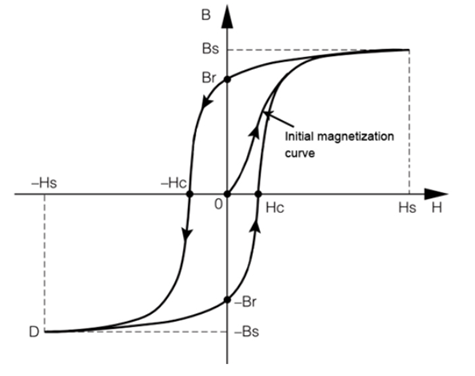

B-H Peita o te Ferrite Māmā

Ko te peita B-H e whakaatu ana i te pūnaha rahi o ngā rauemi ferrite. Ko te wāhi e kākahu ana i te pākiki e whakaatu ana i te pūngao i ngaro i ia huringa riri. Ko ngā wāhi kāhui rahi e pā ana ki ngā ngaro kāhui nui me te pāmahana iti o te kāhua Q.

Te Kaha Parasitic

Ko ngā huringa tata e wehe wehea ana e te whakakāhine, e hanga ana i ngā kapacitāra iti kāore e hiahia ana i te pāmahana rārangi.

Ko tēnei pānga e mōhiotia ana hei kapacitāra huri i waenganui.

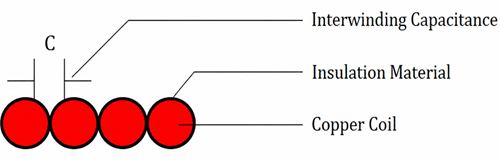

Te Kapacitāra Huri i waenganui i ngā Huringa

Ko te whakaahua e whakaatu ana i te pehea e noho ana te whakakāhine i waenganui i ngā huringa e hanga ana i te kapacitāra tohatoha. Ahakoa kāore tēnei kapacitāra e hanga i te ngaro pūngao, e pā ana ki te mahi pāmahana teitei me te tautoko i te pāmahana ranganu kaika (SRF).

Q-Kāhua me te Whakaū Pūngao

Ka taea hoki te whakakite te Q-kāhua hei ratio i waenganui i te pūngao e pupuri ana ki te pūngao e ngaro ana i ia huringa.

Aroha mai tēnei whakamāramatanga i te pāmahana Q-kāhua.

• Ko ngā heamana Q-teitei hehaki pūngao ētahi atu pūngao i pāngia ki te pāmahana.

• Ko ngā heamana Q-iti ka ngaro i te pākaha rahi o te pūngao e pupuri ana hei pāmahana.

Pehea te Whakawea e te Rere e te Q-Factor

Kaore e noho tonu te Q-factor i runga i te rere.

I nga tikanga:

• Ka piki te Q-factor i te tuatahi i te mea e piki ana te reactance inductive.

• Ka tae ki te uara Q teitei i tetahi rere motuhake.

• Ka tino heke te Q-factor i nga rere teitei i te mea e noho ana te whakaritenga AC, te ngaro o te pūnaha, me nga pānga parasitic ki runga.

Na tenei take, ka tohua e nga kaiwhakarato te Q-factor i tetahi atu rere whakamatautau, kaua e tuku he uara kotahi mo nga tikanga mahi katoa.

Nga Uara Q-Factor Tauheke o nga Inductors Noa

Ka rere ke te Q-factor e pa ana ki te hanga o te inductor, te rauemi core, me te rere mahi.

Inductor Momo	Tauheke Q Mahaanui
Nga Inductors Hau	5–50
Nga Inductors Core Ferrite	20–150
Nga Inductors RF Core Air	50–300+
Nga Inductors RF Rere Runga	100–500+
Nga Inductors Chip (SMD)	10–100

Pehea te Whakawea e te Pātea Kounga o tetahi Inductor ki te Whakatakato Huarahi

Ko te pātea kounga, ka kīia ko te Q-factor, he pānga tūtohu ki te pehea e mahi ana te inductor i roto i te huarahi. He mea nui rawa i nga tātari, nga huarahi raurangi, nga pūnaha RF, nga oscillators, me nga taputapu pānuitanga e tika ana te whakahaere i te rere.

I nga kupu māmā, e whakaatu ana te Q-factor pehea te whiriwhiri me te pātea o te inductor i tetahi rere. Ko te uara Q teitei e tohu ana kei te iti ake nga ngaro o te inductor, ka taea te hanga i tetahi whakautu rere tino whakarewa. Ko te uara Q iti e tohu ana kei te nui ake nga ngaro o te inductor ka hanga i tetahi whakautu pakeke, kāore e mohio.

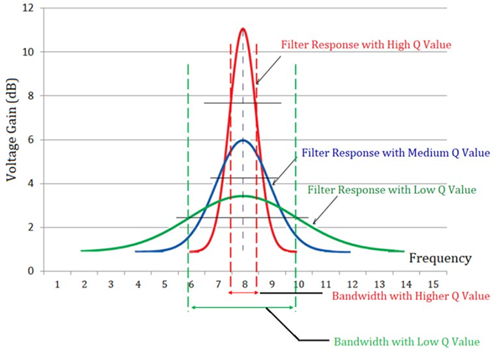

Q Factor me te Whānui Tātari

I roto i nga huarahi tātari, ka tino pānga te Q-factor ki te whānui. Ko te whānui te rahi o nga rere e tuku ana te tātari ki te pato.

Ko te inductor Q-teitei ka hanga i tetahi whānui pātea i te tīmata. He mea hei whaiaro ka whakatepa te huarahi ki te whiriwhiri i tetahi rere motuhake, kātahi ka whakahīhī i nga tohu kāore e hiahiatia. Ko tenei momo whakaū he mea noa i ngā tātari RF, ngā kawenga reo, ngā pūnaha pānuitanga ā-wā, me ngā huarahi whakarite.

Ko te inductor Q-iti ka hanga i tetahi whānui pātea kātahi ka anga ki ngā whakaurunga rahi ake o ngā rere, engari he iti ake te whiriwhiri.

Ka whakaatu te whakaahua Whakatūtinuhia te Whakautu Tātari i te whakaaro e pā ana ki te Q-factor ki te ahua o te whakautu tātari.

Ko te pākū karā eresue (c) e tohu ana i te uara Q teitei. He pānga teitei te pātea me te whānui pātea. Ko tenei ka tohu i te tātari mea (ā-rahi) te tino hāngai ka pahū i ngā pūtatū i te wa o te hurihanga.

Ko te pākū kākāriki ko te tohu i te uara Q toharite. Ka tuku he whakautu to ngā pātea tonutonu, toharite, me te whānui toharite.

Ko te pākū kākāriki ko nga kawea e tohu ana i te uara Q iti. He pātea iti me te whānui pātea. Ko te tikanga ka tuku te tātari ki te paetahi rahi o ngā rere ki te pā moster pānuitanga, engari kāore e taea te whirihora ki tetahi Rere e tika ana.

Nga Inductors Q-teitei vs Q-iti

Te Whakamātau Pūnaha	Inductor Q-teitei	Inductor Q-iti
Te karere Q tewe mua	Ko te tikanga teitei i runga i te 50; ka taea te tae ki te 100–300+ e ngā momo RF	Ko te tikanga he iti rawa i raro i te 20; te mea he mōrearea rākau ki te 5–20
Te whanonga matua	Ka pupuri i te pūngao ki te mahi pai, he iti te ngaro	He nui ake te ngaro me te whānui e mutu ana
Te pātea rōpū e hāngai ana	ESR iti	ESR teitei ake
Te ngaro pūngao	Te ngaro pūngao iti	Te ngaro pūngao teitei
Te whakatōngā ātete	Te whakamarumaru iti	Te whakamarumaru nui
Te whānui	Te whānui pātea i te hāngai	Te whānui pātea i te whānui
Te whiriwhiri o te rere	He tino pai; e wehe te ngārara e pa ana ki te rahi o ngā rere.	He iti; ka tuku he whānui e pa ana ki te pā.
Te teitei whakaongaonga	Te pātea tīwae	Te pātea nui me te hāora
Te mahi tātari	Ko te mea pai mō te whānui pātea me ngā tātari toha.	Ka pai ake mō ngā tangū whānui, kāore e pātohu tonutonu.
Te whakahē i te pepa e pupuru ana	Ko te pāti e piki ngā pūkuru i ngā tūāhua kāore.	Ko te pāti e iti ana i ngā pūkuru e pa ana i ngā tūāhua kāore.
Te mutunga pai	Te tere nau mai i nga wāhi e pai ana te reka ki te huarahi e immerwhera ana.	Te tere iti e te mea ka ngata te puwaha
Ko te tomokanga i te raruraru	Te whiriwhiri mahi pāpaku, te rehita ki te rūma, me te mana nui.	Ka mutu te whakaaro i nga tohu haunga.
Te painga	Te iti te ngaro, te teitei . te whiriwhiri, te pātea whakawhānui, te pai ki nga rohe RF.	Te whānui pātea, te hoahoa ngāmotu, ā, i ētahi wā, he teiti te utu, he mea whaihua ki ngā huringa pūngao.
Te painga	Te whānuitanga pātea tauira, ngā utu teitei te ārai me ngā mīraka; kāore e tino pai mo ngā tīranga whānui.	Te whānui teitei, nga ngaro, te pānga iti e kore e hāngai, ka tipu te mahana.
Nga tono tauheke hei tauira	RF tātaritanga, pātea-pātea tātaritanga, oscilla, whakarite rihi, kaiwhakahaere rārangi, poraka tiraha, pūnaha korekore	DC-DC kaiwhakatika, patuhanga tohatoha, EMI tātaritanga, pātea pātea, rahi hīra
Ka pai te whakamahi ina	Kei te hiahiatia e te poraka te whakarite whakahirahira, te ngaro iti, me te whakahaere wāhine pātea	Kei te hiahiatia e te poraka te pātea whānui, te whakahaere pū, e pā ana ki te tātari whānui

Tūnga Aro mārō me te Q-Factor

E kīia ana kei ia poraka maori he pātea parakete i waenga i ngā kākano whakawhiti. I te taha o te mauri, ko tēnei pātea ka hanga he tūnga mārō e mōhiotia ana hei Tūnga Aro mārō (SRF).

I te mea ka tata te pātea whakahaere ki te SRF, ka tae te Q-factor ki te nui te mākau ka tīmata te heke tere. I runga i te tūnga mārō, ka pā te kōwhiringa ki te kāpōngoi āhua kia kaua e rite ki te poraka.

Hei whakahaere poraka pono, me kōwhiri koe i te poraka e kī ana te SRF ka teitei ake i te pātea whakahaere e pā ana.

Me pēhea te Whakapai i te Q-Factor o te Poraka?

E ai ki ngā tikanga hoahoa, ka taea te whakapai i te Q-factor o te poraka:

- whakamahi i ngā pūkoro pēnei i te pātea DC.

- whakamahi i ngā taonga pokanga ngaro iti.

- whakaitihia te rahi o ngā papatanga whakauru.

- whakaiti i te ngaro pānga tata.

- whakamahi i te wire litz i ngā tono pātea teitei.

- whakahaere i raro iho i te tūnga mārō.

- kōwhiri ngā poraka he whakaahua ESR iti.

Ka taea te whakapai i te Q-factor ki te whakarei i te mahi, te whakaiti i te wera, me te whakarei i te mahi poraka whānui.

Ngā tono i roto i te ao mo ngā Poraka High-Q

RF tātaritanga me ngā Pūnaha Whakarongo

Ka whakamahia te poraka High-Q i te nuinga i ngā RF tātaritanga mo ngā pūnaha whakarongo korekore. E awhina ana ēnei tātaritanga ki te wehewehe i te tohu e hiahiatia ana mai i ngā pātea kāore e hiahiatia ana i te wa e pupuri ana i te ngaro tohu iti. He mea whaihua rātou i ngā kāwai waea, ngā kaiwhakahaere rārangi, ngā pūnaha hōtaka, ngā kaiwhakahaere GPS, me ngā hono raraunga korekore.

Nga Poraka Oscillator

Ka whakamahi ngā poraka oscillator i ngā poraka me ngā kāpōngoi ki te hanga i ngā tohu pātea whirihora. Ka awhina te poraka High-Q ki te whakaiti i ngā ngaro i roto i te poraka mārō, e tautoko ana i te pai o te mana pātea, ngā pūnaha tonu, me ngā noise āpiti iti. He mea nui tēnei i ngā kaiwhakanao tohu, ngā kaiwhakaaturanga pātea, ngā kaiwhakahaere, me ngā poraka whakahaere.

Nga Pūnaha Whakarite Antena

Ka whakamahia te poraka High-Q i ngā pūnaha whakarite antena hei whakapai i te whakawhiti pūmana i waenga i te kaiwhakatika me te antena. I te mea he ngā ngaro iti rātou, ko te nui o te pūmana RF ka tae ki te antena kāore e riro hei wera. Ka taea tēnei te whakapai i te pai whakawhiti me te tautoko i te awhe korekore.

Nga Poraka Tank Resonant

Ka whakamahia hoki te poraka High-Q i roto i ngā poraka tank resonant hei whakarite i ngā ngaro iti ki te pupuri i te wawata kaha me te whakahaere poraka tonu.

Nga Putaiao me nga Whakamatau

Ko te nuinga o ngā taputapu whakamātautau e hiahia ana ki te hanga tohu tika me te tātaritanga pātea. Ka awhina te poraka High-Q ki te whakaiti i ngā ngaro i roto i te poraka, e tautoko ana i te pai me te tika o te whakahaere i ngā taputapu pēnei i ngā kaiwhakamatau pātea, ngā kaiwhiwhi tohu, ngā kaiwhakamātautau awhe, me ngā kaiwhakamātautau whatunga.

Nga Pūnaha Rerehiko me te Tiaki

Ko ngā pūnaha rererangi me te tiaki he maha ngā wa e whakahaerehia ana i roto i ngā taiao pātea teitei e hiahiatia ana. Ka awhina te poraka High-Q ki te whakapai i te pātea ou te signal me te whakaiti i te pānga pātea kāore e hiahiatia ana i te radar, te navigation, me ngā pūnaha karere ā-military.

Nga Pūnaha Hoko me te Pūtaiao

Ko ngā pūringa rongoā me ngā taputapu pūtaiao e hiahia ana ki ngā tohu pātea tino whakakikipō whakaurua me te whakamāramatanga pūmau. Ka awhina te poraka High-Q ki te whakaiti i te ngaro tohu me te noise i roto i ngā pūnaha pēnei i ngā taputapu whakarōpū rongoā, ngā pūranga RF, me ngā taputapu tātaritanga i roto i te wharepūtaiao.

Whakakapi

Ko te mōhio ki te Q-factor ka awhina i a koe ki te kōwhiri i te poraka tika mo te poraka, kaua e tirohia anake te uara inductance. E rua ngā poraka ka taea e rātou te tango i te induu, engari ka taea hoki te huihuia he rerekē i te pātea teitei. Mā te mōhio ka pehea te tīma Q-factor, ka taea e koe te mārama pai ki te take ko ēhea te poraka e pai ana mō te whiriwhiri pātea whakahirahira, te ngaro pū iti, me te mahi poraka tonu.

He Whakaritenga Whakaī [FAQ]

1. Ka taea e rua ngā poraka e kitea te induu ki te rerekē ngā Q-factors?

Āe. E rua ngā poraka ka taea e rātou te tango i te uara inductance, engari ka rerekē ngā whakautu kākano, ngā taonga pokanga, ngā tikanga hanga, me ngā āhuatanga pātea. Ka taea enei rereketanga te whakaputa uara Q-factor rerekē nui me te mahi.

2. He aha te take e kī ana ngā pepa raraunga i te Q-factor i tetahi pātea motuhake?

Ka rerekē te Q-factor me te pāmahana nāna i rereketia te reactance inductive, te pāmahana AC, me ngā ngaronga o te pokanga i te wā e rerekē ana te pāmahana. Kāore e taea e te uara Q ko te mea i whakatau i tetahi pāmahana te whakaatu i te mahi i tetahi atu pāmahana.

3. Ka hua mai i te inductance te whakaū i te Q-factor teitei ake?

Kāore. Ahakoa ka piki te reactance inductive me te inductance, ko te inductance teitei ka hiahia ki te nui ake o ngā huringa, ka nui ake te pāmahana me ngā ngaronga. Ka whakawhirinaki te Q-factor whakamutunga ki te reactance me ngā ngaronga katoa.

4. Me pēhea te pāmahana e pā ana ki te Q-factor o tētahi inductora?

I te mihi o te pāmahana, ka piki te pāmahana o ngā ia. Ka pā te pāmahana teitei ki te nui o te ngaronga pūngao, e taea ai te whakaiti i te Q-factor me te whaihua whānui o te inductora.

5. He aha te take e whakamahia ai ngā inductora pokanga-hāora i ngā whakaritenga Q-teitei?

Ka whakakore ngā inductora pokanga-hāora i ngā ngaronga pokanga pani pērā i te hysteresis me ngā ngaronga o ngā ia ew. Ka taea tēnei te awhina ki te whakatutuki i ngā uara Q-teitei rawa, ka waiho hei āhukahuka mo te RF me ngā pūnaha pāmahana teitei.

6. He aha te mahia ki tētahi inductora e mahi ana i te taha ki tōna pāmahana whakamātautau?

I te rōrahi ki te pāmahana whakauru, ka riro mai te capacitance pāraru hei mea nui. Ka peita te Q-factor ka pēnā, ka heke wawe te haere, te mea e pāngia ai te inductora ki te ngaro i te kaitautoko inductive e pai ana.
